Forces over angle

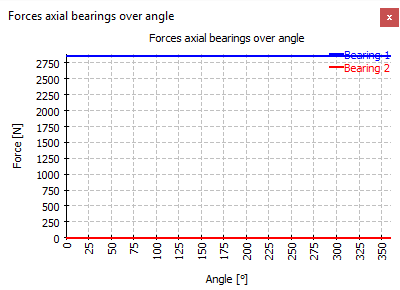

AxRaRBC-kraftAxiallagerUmfang The distribution of roller forces over angle is shown in this diagram. For force is the total force between roller and race.
