Contact stress over angle

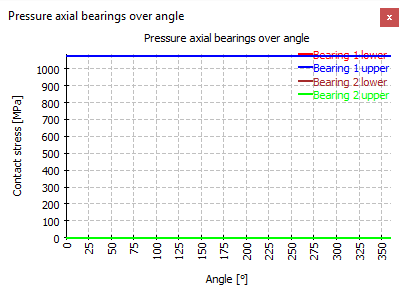

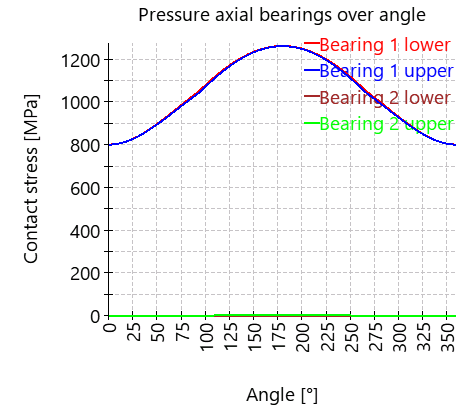

The contact stress can also be shown over the angular position. The maximal contact stress per roller is shown. Angle zero is in the x-axis, 270° on the z-axis.
The contact stress can also be shown over the angular position. The maximal contact stress per roller is shown. Angle zero is in the x-axis, 270° on the z-axis.
