Orthogonal shear stress over minor axis

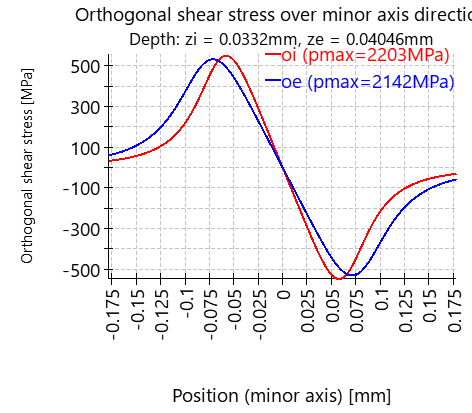

The orthogonal shear stress is zero below the contact and has its maximum in a certain distance from the center of contact. This can be seen in this diagram of orthogonal shear stress over position on minor axis.
The orthogonal shear stress is zero below the contact and has its maximum in a certain distance from the center of contact. This can be seen in this diagram of orthogonal shear stress over position on minor axis.
